Laser Cutting Edge Quality Standards

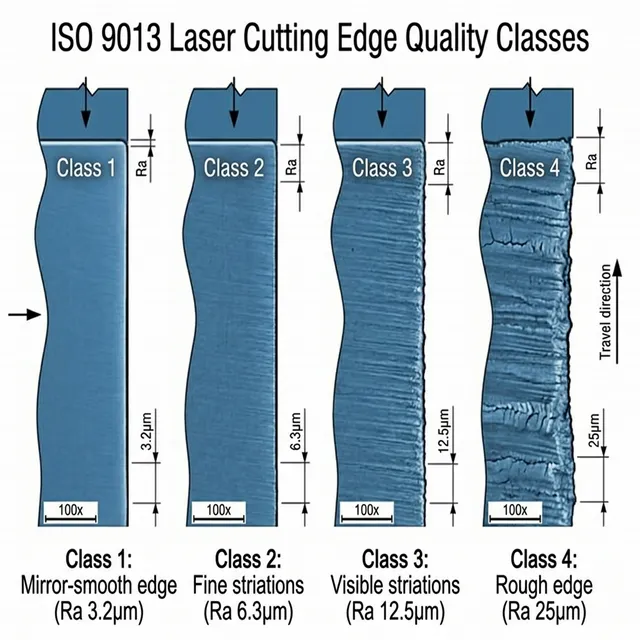

ISO 9013 laser cutting edge quality cross-sections: Class 1 mirror-smooth (Ra 3.2μm) through Class 4 rough edge (Ra 25μm) at 100x magnification — ISO 9013 edge quality classes: Class 1 (Ra 3.2μm) to Class 4 (Ra 25μm) cross-section comparison

⚡ Quick Answer

ISO 9013 defines 4 edge quality classes: Class 1 (Ra ≤3.2μm) for precision/aerospace,Class 2 (Ra ≤6.3μm) for standard fabrication, Class 3 (Ra ≤12.5μm) for structural, Class 4 (Ra ≤25μm) for rough cuts. Perpendicularity tolerance: 0.05mm + 0.003×thickness.

Understand and achieve optimal edge quality with ISO 9013 standards. Compare quality grades, identify defects, and learn improvement methods for laser cutting excellence.

ISO 9013:20174 Quality GradesDefect SolutionsUpdated 2025-11-02

📐 Understanding Edge Quality

Edge quality in laser cutting is defined by multiple parameters per ISO 9013:2017 international standard. Each quality grade (1-4) specifies tolerance ranges for perpendicularity, roughness, dross, and other characteristics.

Perpendicularity

Measures how vertical the cut edge is. Critical for welding and assembly. Grade 1: ±0.05mm, Grade 4: ±0.50mm.

Roughness (Ra)

Surface texture measurement in micrometers. Lower = smoother. Grade 1: 1.6-3.2μm, Grade 4: 12.5-25μm.

Dross

Molten material re-solidified on bottom edge. Unacceptable in Grade 1, moderate amounts OK in Grade 4.

HAZ

Heat Affected Zone - material property changes from thermal input. Minimize for structural integrity.

ISO 9013 Quality Classification

Grade 1 (Precision)

Highest quality - precision cutting with near-mirror finish

Perpendicularity

±0.05mm

Roughness

Ra 1.6-3.2 μm

Cost Factor

1.8x standard

Speed

slow

Applications: Precision mechanical parts, Medical devices and instruments +4 more

▶ View details

Grade 2 (Fine)

High quality with excellent edge finish

Perpendicularity

±0.15mm

Roughness

Ra 3.2-6.3 μm

Cost Factor

1.3x standard

Speed

medium

Applications: Automotive parts, Electronic enclosures +4 more

▶ View details

Grade 3 (Standard)

Production quality - acceptable for most applications

Perpendicularity

±0.30mm

Roughness

Ra 6.3-12.5 μm

Cost Factor

1.0x (baseline)

Speed

fast

Applications: Construction hardware, Mechanical frames +4 more

▶ View details

Grade 4 (Economy)

Rough cutting for non-critical applications

Perpendicularity

±0.50mm

Roughness

Ra 12.5-25 μm

Cost Factor

0.6x standard

Speed

very fast

Applications: Construction site temporary parts, Raw material blanking +4 more

▶ View details

📐 Edge Profile Comparison

Visual cross-sectional comparison of edge profiles across quality grades. Click on any grade to see detailed characteristics.

Grade 1 (Precision)

Roughness:Rz5 10-20 μm

Dross:None

Grade 2 (Fine)

Roughness:Rz5 20-40 μm

Dross:Minimal/trace amounts

Grade 3 (Standard)

Roughness:Rz5 40-100 μm

Dross:Small amount acceptable

Grade 4 (Economy)

Roughness:Rz5 100-160 μm

Dross:Moderate amount

📊 Understanding Roughness Measurements (Ra vs Rz5)

ISO 9013:2017 uses Rz5 (Mean Height of Profile) as the primary roughness metric for thermal cutting quality classification. Understanding the difference between Ra and Rz5 is critical for proper quality specification.

Ra (Arithmetic Average)

Definition: Average of absolute values of profile heights over evaluation length

Measurement: Most common roughness parameter, easy to measure with contact profilometer

Typical Use: General surface finish specification, machining quality control

Rz5 (Mean Height)

Definition: Average of 5 largest peak-to-valley heights within sampling length

Measurement: ISO 9013:2017 primary metric for thermal cutting edge quality

Typical Use: Thermal cutting quality classification, captures extreme variations

Aspect	Ra (Arithmetic Average)	Rz5 (Mean Height)
Calculation Method	Average of all absolute deviations	Average of 5 largest peak-to-valley heights
Sensitivity	Less sensitive to extreme variations	Highly sensitive to extreme variations
ISO 9013:2017	Secondary reference	Primary metric ✓
Typical Values	1.6 - 25 μm (laser cutting)	10 - 160 μm (laser cutting)
Conversion	Approximate: Rz5 ≈ 5-8 × Ra (varies by process)
Best For	General machining, consistent surfaces	Thermal cutting, surfaces with striations

🔑 Key Takeaways

•ISO 9013:2017 uses Rz5 as the primary roughness metric for thermal cutting quality classification
•Rz5 captures extreme variations better than Ra, making it more suitable for laser cutting with striations
•Both metrics are valid - Ra is more common in general manufacturing, Rz5 is standard for thermal cutting
•Rough conversion: Rz5 values are typically 5-8 times larger than Ra values for the same surface
•Always specify which metric when communicating quality requirements to avoid confusion

📏 Thickness-Dependent Tolerances

Perpendicularity tolerances vary by material thickness per ISO 9013:2017. Thicker materials require looser tolerances due to increased beam divergence and heat accumulation.

Perpendicularity Tolerance by Material Thickness

Chart Interpretation: As material thickness increases, perpendicularity tolerances become looser (higher values) for all grades. Thicker materials are more challenging to cut with perfect perpendicularity due to increased heat accumulation and beam divergence through the material.

Thickness Range	Grade 1 (Precision)	Grade 2 (Fine)	Grade 3 (Standard)	Grade 4 (Economy)
0.5 - 3mm	±0.05mm	±0.10mm	±0.20mm	±0.40mm
3 - 10mm	±0.05mm	±0.15mm	±0.30mm	±0.50mm
10 - 20mm	±0.08mm	±0.20mm	±0.40mm	±0.70mm
20 - 32mm	±0.10mm	±0.25mm	±0.50mm	±0.90mm

⚠️ Thickness Impact

• Thicker materials = looser tolerances
• Grade 1 tolerance increases 2x from thin to thick
• Grade 4 tolerance increases 2.25x
• Above 20mm, consider alternative processes for Grade 1

✓ Best Practices

• Specify grade AND thickness in requirements
• Use multiple passes for thick + Grade 1
• Verify perpendicularity at process qualification
• Consider material type alongside thickness

🔬 Material-Specific Quality Guidelines

Different materials achieve different quality grades with varying difficulty. This matrix shows which grades are easily achievable for common laser cutting materials.

Material	Grade 1 (Precision)	Grade 2 (Fine)	Grade 3 (Standard)	Grade 4 (Economy)	Difficulty
Mild Steel	Hard	Possible	✓ Easy	Always	Easy
Stainless Steel 304/316	Possible	✓ Easy	✓ Easy	Always	Medium
Aluminum 5052/6061	Possible	✓ Easy	✓ Easy	Always	Medium
Copper/Brass	Hard	Possible	✓ Easy	Always	Difficult
Titanium	Possible	✓ Easy	✓ Easy	Always	Medium
Galvanized Steel	Hard	Possible	✓ Easy	Always	Easy

Matrix Legend

Achievability Indicators:

✓ Easy

Readily achievable with standard parameters

Possible

Achievable with optimized parameters

Hard

Difficult, requires special techniques

Overall Difficulty:

EasyStandard laser cutting, minimal challenges

MediumRequires specific gas/parameters

DifficultChallenging due to material properties

✓ Easy to Cut

Mild Steel: Excellent with oxygen assist. Grade 2-3 readily achievable with standard parameters.

⚠️ Requires Care

Stainless & Aluminum: Need nitrogen for Grade 1-2. Oxidation and reflectivity concerns.

⚡ Challenging

Copper/Brass: High thermal conductivity and reflectivity. Fiber laser preferred.

🌍 International Standards Comparison

Edge quality standards vary globally. Compare ISO 9013, AWS D1.1, EN 1090, and JIS B0417 to understand regional requirements and grade equivalents.

Standard	Region	Grade 1 Equivalent	Grade 2 Equivalent	Grade 3 Equivalent	Grade 4 Equivalent
ISO 9013:2017 ISO 9013:2017 Thermal Cutting - Classification of thermal cuts	International	Grade 1	Grade 2	Grade 3	Grade 4
AWS D1.1 AWS D1.1 Structural Welding Code - Steel	North America	N/A	Acceptable for welding	May require prep	Requires preparation
EN 1090 EN 1090 Execution of steel structures	Europe	EXC4	EXC3	EXC2	EXC1
JIS B0417 JIS B0417 Laser processing machines - Vocabulary	Japan	Class A	Class B	Class C	Class D

🌍 Global Standards Overview

ISO 9013:2017 is the primary international standard for thermal cutting quality classification worldwide

AWS D1.1 focuses on weldability rather than cutting quality, common in North American structural steel

EN 1090 covers entire fabrication process with execution classes, required for CE marking in Europe

JIS B0417 is widely used in Asia-Pacific region and generally compatible with ISO standards

⚠️ Important Considerations

•Not directly interchangeable: Grade equivalents are approximate, not exact conversions
•Specify the standard: Always reference which standard applies to your project requirements
•Regional requirements: Some regions mandate specific standards for compliance (e.g., CE marking)
•Customer specifications: Customer drawings may reference any of these standards
•Welding vs cutting: AWS focuses on weldability, ISO on cutting quality - different priorities

📋 Quick Reference Guide

When to use ISO 9013:

• International projects
• Laser/plasma/oxyfuel cutting quality specification
• General manufacturing and fabrication
• When customer doesn't specify a standard

When to use AWS D1.1:

• Structural steel welding in North America
• Bridge and building construction
• When edge preparation for welding is critical
• Customer specifies AWS compliance

When to use EN 1090:

• Steel structures sold in European Union
• CE marking compliance required
• Execution class specified in contract
• European construction projects

When to use JIS B0417:

• Projects in Japan and Asia-Pacific
• Japanese customer specifications
• Compatible with ISO requirements
• Regional manufacturing standards

🏭 Industry-Specific Acceptance Criteria

Quality requirements vary significantly by industry sector. Aerospace demands Grade 1, while construction typically accepts Grade 3. Understand typical and minimum grades by application.

✈️

Aerospace

Typical Grade

Minimum Grade

Critical Parameters:

PerpendicularityHAZ depthMicro-cracksSurface roughness

Strictest requirements. Grade 1 mandatory. 100% edge inspection required. Metallurgical analysis for critical parts

🏥

Medical Devices

Typical Grade

Minimum Grade

Critical Parameters:

Surface finishCleanlinessBurr-free edgesHAZ minimal

Grade 1 required for surgical instruments and implants. Biocompatibility and sterilization considerations

🚗

Automotive (Structural)

Typical Grade

Minimum Grade

Critical Parameters:

PerpendicularityWeldabilityDross removal

Grade 2 for safety-critical components. Grade 3 acceptable for non-structural parts

💻

Electronics Enclosures

Typical Grade

Minimum Grade

Critical Parameters:

Burr-free edgesDimensional accuracySurface appearance

Grade 2 for visible surfaces. Grade 3 acceptable for internal brackets

🏗️

Construction & HVAC

Typical Grade

Minimum Grade

Critical Parameters:

WeldabilityStructural integrityCost efficiency

Grade 3 standard for most applications. Grade 4 acceptable for rough blanking

🪑

Furniture & Displays

Typical Grade

Minimum Grade

Critical Parameters:

Surface appearanceBurr-freeMinimal oxidation

Grade 2 for visible edges. Nitrogen cutting for stainless steel displays

Industry Sector	Typical Grade	Minimum Grade	Key Focus Areas
✈️Aerospace	1	Grade 1+	Perpendicularity, HAZ depth, Micro-cracks
🏥Medical Devices	1	Grade 1+	Surface finish, Cleanliness, Burr-free edges
🚗Automotive (Structural)	2	Grade 2+	Perpendicularity, Weldability, Dross removal
💻Electronics Enclosures	2	Grade 2+	Burr-free edges, Dimensional accuracy, Surface appearance
🏗️Construction & HVAC	3	Grade 3+	Weldability, Structural integrity, Cost efficiency
🪑Furniture & Displays	2	Grade 2+	Surface appearance, Burr-free, Minimal oxidation

📊 Industry Quality Requirements Summary

Highest Standards (Grade 1):

✈️Aerospace: Safety-critical components, 100% inspection, metallurgical analysis required
🏥Medical Devices: Surgical instruments, implants, biocompatibility considerations

Standard Production (Grade 2-3):

🚗Automotive: Grade 2 for structural, Grade 3 for non-critical parts
🏗️Construction: Grade 3 standard, focus on weldability and cost efficiency

✓ Best Practices by Industry

Match Quality to Application

Don't over-specify quality grades. Use Grade 1 only when truly necessary (aerospace, medical). Grade 2-3 is sufficient for 90% of industrial applications.

Document Requirements Clearly

Specify grade, standard (ISO/AWS/EN), and critical parameters on drawings. Include inspection frequency and acceptance criteria to avoid disputes.

Consider Post-Processing

If parts will be welded, coated, or machined, factor this into quality requirements. Grade 3 edges may be acceptable if subsequent operations will modify the edge.

Balance Cost and Quality

Grade 1 costs 80% more than Grade 3. Analyze which parts truly need premium quality versus where standard quality is acceptable.

🔧 Edge Preparation for Welding

Welding process requirements dictate minimum edge quality. TIG welding requires Grade 1-2, while stick welding accepts Grade 3-4. Match cutting quality to your welding process.

GMAW (MIG/MAG)

Minimum Grade Required

Grade 2+

Max Roughness

Ra 12.5 μm

Edge Preparation

Dross-free, light deburring

GTAW (TIG)

Minimum Grade Required

Grade 1+

Max Roughness

Ra 6.3 μm

Edge Preparation

Mirror-smooth, zero dross

SMAW (Stick)

Minimum Grade Required

Grade 3+

Max Roughness

Ra 25 μm

Edge Preparation

Basic cleaning adequate

Laser/Electron Beam

Minimum Grade Required

Grade 1+

Max Roughness

Ra 3.2 μm

Edge Preparation

Perfect cleanliness required

Resistance (Spot/Seam)

Minimum Grade Required

Grade 2+

Max Roughness

Ra 12.5 μm

Edge Preparation

Clean surface contact

Welding Process	Min Grade	Max Roughness	Edge Preparation	Difficulty
GMAW (MIG/MAG)	2	Ra 12.5 μm	Dross-free, light deburring	Moderate
GTAW (TIG)	1	Ra 6.3 μm	Mirror-smooth, zero dross	Strict
SMAW (Stick)	3	Ra 25 μm	Basic cleaning adequate	Lenient
Laser/Electron Beam	1	Ra 3.2 μm	Perfect cleanliness required	Strict
Resistance (Spot/Seam)	2	Ra 12.5 μm	Clean surface contact	Moderate

Edge Preparation Visual Guide

Perfect: No dross, smooth, oxide-free

Good: Light deburring, remove loose dross

Acceptable: Remove loose dross only

🔑 Key Guidelines for Welding Edge Preparation

Critical Success Factors:

1.Match cutting quality to welding process: TIG requires Grade 1-2, Stick accepts Grade 3-4
2.Dross removal is mandatory: Even for forgiving processes, loose dross causes porosity
3.Oxide-free for stainless: Use nitrogen cutting or clean edges before welding stainless steel
4.Perpendicularity matters: Poor perpendicularity causes fit-up issues and incomplete fusion

Common Mistakes to Avoid:

✗Using oxygen-cut edges for TIG welding stainless steel
✗Ignoring dross on bottom edge - causes weld defects
✗Over-specifying quality when Grade 3 is sufficient
✗Skipping edge inspection before critical welds

📋 Quick Reference: Cutting Quality for Welding

Grade 1

TIG, Laser, E-Beam

Grade 2

MIG/MAG, Resistance

Grade 3

Stick, Flux-Core

Grade 4

Requires prep work

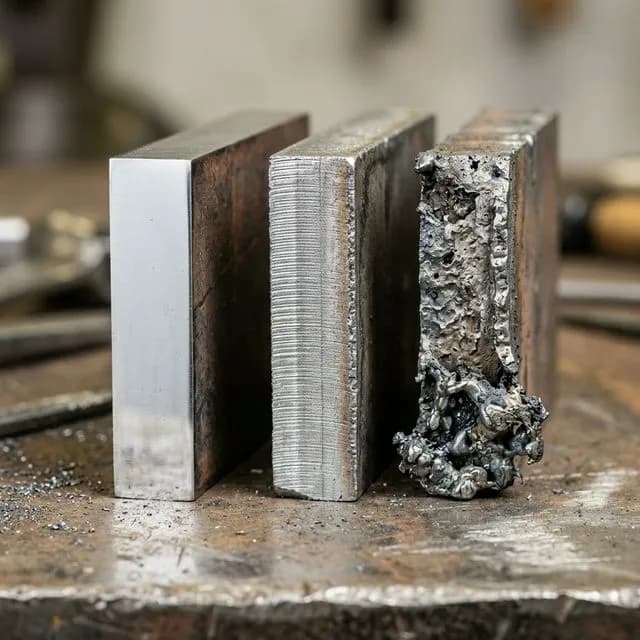

Close-up macro photography of three different metal edge cuts showing different defect types

Visual inspection helps quickly identify process issues before specialized measurement tools are needed.

🔍 Visual Defect Identification Guide

Identify common edge defects with visual diagrams. Click on any defect to see causes and solutions.

Dross/Slag Attachment

major

Excessive Striations (Drag Lines)

minor

Edge Burning/Oxidation

major

Non-Perpendicular Cut (Taper)

critical

Kerf Width Variation

major

Micro-Cracks at Edge

critical

Burr Formation

minor

How to use: Click on any defect card to see detailed causes and solutions. The diagrams show cross-sectional views of the cut edge with the defect highlighted. Severity levels indicate the impact on part quality and functionality.

✅ Quality Inspection Checklist

Step-by-step quality verification process. Use this interactive checklist to ensure comprehensive edge quality inspection per ISO 9013:2017 requirements.

Inspection Progress

0 / 8 Steps Complete

Visual Inspection

Method: Naked eye and magnifying glass

Every part or 100% sampling10x magnifier, adequate lighting

Dross Height

Method: Go/no-go gauge or scraper test

Every part or statistical samplingDross gauge, scraper

Perpendicularity

Method: Dial indicator or square measurement

First article, then every 50 parts or shiftDial indicator, engineer's square, CMM

Surface Roughness (Ra/Rz5)

Method: Contact or optical profilometer

Sample basis: 1 per batch or process validationSurface profilometer (Mitutoyo, Mahr, etc.)

Dimensional Accuracy

Method: Caliper or CMM measurement

First article, then sampling per quality planDigital caliper, CMM, optical comparator

Kerf Width Consistency

Method: Measure kerf at multiple locations

Process validation and troubleshootingOptical microscope or caliper

Heat Affected Zone

Method: Metallographic cross-section

Initial qualification, then periodic auditMicroscope, etching chemicals, polishing equipment

Burr Height

Method: Tactile inspection and measurement

Every part for safety and assembly concernsMicrometer, burr gauge

📋 Inspection Guidelines

Inspection Sequence:

1.Visual first: Quick check for obvious defects before detailed measurements
2.Dross check: Easy to verify, determines if part needs rework
3.Dimensional: Verify perpendicularity and dimensions meet tolerances
4.Roughness: Sample-based, not every part unless Grade 1 required
5.Metallurgical: Only for qualification or critical aerospace/medical parts

Best Practices:

✓First article inspection: Complete all steps for first part of new setup
✓Statistical sampling: Use sampling plans for production runs
✓Document results: Record measurements for traceability
✓Calibrated equipment: Ensure all measurement tools are calibrated
✓Trained inspectors: Personnel should understand acceptance criteria

🔧 Inspection Equipment Reference

Basic Tools:

• 10x magnifying glass
• Digital caliper (±0.01mm)
• Engineer's square
• Dross gauge/scraper

Precision Tools:

• Dial indicator
• Surface profilometer
• Optical microscope
• CMM (Coordinate Measuring Machine)

Lab Equipment:

• Metallographic microscope
• Polishing/etching equipment
• Hardness tester
• Optical comparator

📏 Quality Measurement Methods

Parameter	Method	Standard	Frequency
Surface Roughness (Ra)	Contact or optical profilometer	ISO 4287	Sample-based QC or every batch
Perpendicularity	Dial indicator or CMM measurement	ISO 9013	First article and periodic checks
Dross Height	Visual inspection and go/no-go gauge	ISO 9013	Every part or sampling
Heat Affected Zone	Metallographic cross-section analysis	Microscopy per ASTM E3	Qualification and periodic audits
Kerf Width	Optical microscope or caliper	Company specification	First article and process control

💡 Quality Optimization Tips

Match Quality to Application

Don't over-specify. Grade 3 is sufficient for 80% of applications. Reserve Grade 1 for precision parts where tolerances matter. Using Grade 1 for everything increases costs 80% unnecessarily.

Optimize Gas Selection

Nitrogen produces Grade 1-2 quality on stainless steel but costs 3x more than oxygen. For carbon steel structural parts (Grade 3 acceptable), oxygen saves 60% on gas costs.

Monitor and Control Variables

Quality consistency requires controlling: material flatness, lens cleanliness, gas pressure, nozzle condition, and focus position. Check these daily for Grade 1-2 work.

Document Your Parameters

Create a parameter library for each material/thickness/grade combination. Once optimized, document speeds, powers, gas settings. Reduces setup time and ensures repeatability.

📊 Quality vs Cost Trade-offs

Grade	Speed	Gas Cost	Total Cost	Best Use
Grade 1	Slow (-50%)	High N₂	1.8x	Critical precision parts only
Grade 2	Medium (-30%)	Medium N₂	1.3x	High-quality production
Grade 3	Fast (baseline)	Low O₂/Air	1.0x	Standard production (most common)
Grade 4	Very Fast (+20%)	Very Low	0.6x	Rough blanking, non-critical

🔍 When Edge Quality Drops: 5 Root Causes & Fixes

1. Excessive Dross / Burr Formation

Symptoms: Metal beads adhering to bottom edge, rough touch feel.

Fix: Increase gas pressure by 1-2 bar. Check nozzle alignment (should be <0.02mm off-center). Reduce speed by 5-10%. For nitrogen cutting, ensure purity > 99.95%. Replace worn nozzle — deformed nozzles cause asymmetric gas flow, the #1 cause of one-sided dross.

2. Striation Lines (Surface Roughness Ra Too High)

Symptoms: Visible parallel lines on cut face, Ra exceeding class target.

Fix: Reduce cutting speed by 15-25% (the most impactful parameter for Ra). Verify focus position — shift 0.5mm toward material surface for smoother cuts. On thick plate (> 10mm), switch from CW to pulse mode at 500-1000Hz for reduced striation depth.

3. Perpendicularity / Taper Issues

Symptoms: Cut angle > specification, wider at bottom or top.

Fix: Top-wider taper: focus is too high, lower by 0.5-1mm. Bottom-wider taper: focus is too low, raise by 0.5-1mm. Also check beam centering through the nozzle using tape test — misalignment > 0.05mm causes systematic taper on all cuts.

4. Heat-Affected Zone (HAZ) Too Wide

Symptoms: Discoloration > 0.5mm from edge, hardness changes in adjacent material.

Fix: Increase cutting speed (reduces energy input per mm). Use nitrogen instead of oxygen to eliminate exothermic oxidation heat. For stainless steel, use high-pressure N₂ (14-20 bar) to maximize cooling. Consider pulsed cutting mode for heat-sensitive materials.

5. Inconsistent Quality Between Parts

Symptoms: First parts perfect, later parts degrade; or quality varies by sheet position.

Fix: Check protective window for contamination (replace if burned spots visible). Verify material flatness — warped sheets change standoff distance. Monitor gas supply pressure during long runs (bottles dropping below minimum cause quality degradation). Check chiller temperature stability (±0.5°C target).

🏆 How to Achieve ISO 9013 Class 1 Quality

Class 1 (Ra ≤ 3.2μm) is the highest quality grade, required for aerospace, medical, and precision mechanical components. Achieving it consistently requires systematic parameter optimization.

Parameter Requirements

• Speed: 40-60% of maximum rated speed

• Gas: Nitrogen, 99.999% purity, 14-20 bar

• Focus: -0.5 to -1mm below surface

• Nozzle: 2.0-2.5mm, replaced every 200 pierces

• Power: CW mode, 80-90% of max

Verification Steps

1. Cut test coupon at target parameters

2. Measure Ra with profilometer at 3 points

3. Check perpendicularity with precision square

4. Inspect for micro-burr under 10× magnification

5. Document parameters for production repeatability

🔧 Related Resources & Guides

Assist Gas Selection

Gas choice affects quality significantly - nitrogen for Grade 1-2

Cutting Speed Chart

Optimize speed-quality balance for different grades

Lens Specifications

Lens choice impacts edge quality and kerf width

Nozzle Selection Guide

Nozzle type and condition affect dross formation

Focus Position Guide

Focus position critical for perpendicularity

Material & Thickness Parameters

Recommended parameters by material and thickness

Process Optimization

Comprehensive guide to improving cut quality

Troubleshooting Guide

Diagnose and fix edge quality problems

Cost Calculator

Calculate cost impact of different quality grades

Beam Quality Guide

M² factor directly impacts edge quality and Ra values

ISO 9013 Practical Guide

Step-by-step ISO 9013 measurement and compliance

Edge Roughness Measurement

Rz5, Ra measurement methods and improvement techniques

Data Disclaimer: This edge quality data is based on ISO 9013:2017 international standard and industry best practices, for reference only. Actual quality grades and acceptance criteria depend on specific application requirements, customer specifications, and industry standards. Always refer to applicable standards and customer drawings. Data last updated: 2025-11-02.

By LaserSpecHub Engineering Team

Content reviewed and updated March 2026
