Laser Cutting Nozzle Selection Guide
Choose the right nozzle to optimize cut quality, speed, and operational costs
⚡Quick Reference Guide
| Material | Thickness | Gas | Nozzle Ø | Standoff | Pressure |
|---|---|---|---|---|---|
| Carbon Steel | 1-3mm | O₂ | 1.0mm | 0.7mm | 0.5-1.0 bar |
| Carbon Steel | 3-8mm | O₂ | 1.5mm | 0.8mm | 1.0-1.5 bar |
| Stainless Steel | 1-3mm | N₂ | 1.2mm | 1.0mm | 10-12 bar |
| Stainless Steel | 3-8mm | N₂ | 1.5mm | 1.2mm | 12-15 bar |
| Aluminum | 1-3mm | N₂ | 1.2mm | 1.5mm | 8-10 bar |
| Aluminum | 3-8mm | N₂ | 1.5mm | 1.8mm | 10-12 bar |
* Values are typical recommendations. Adjust based on specific laser power, material condition, and quality requirements.

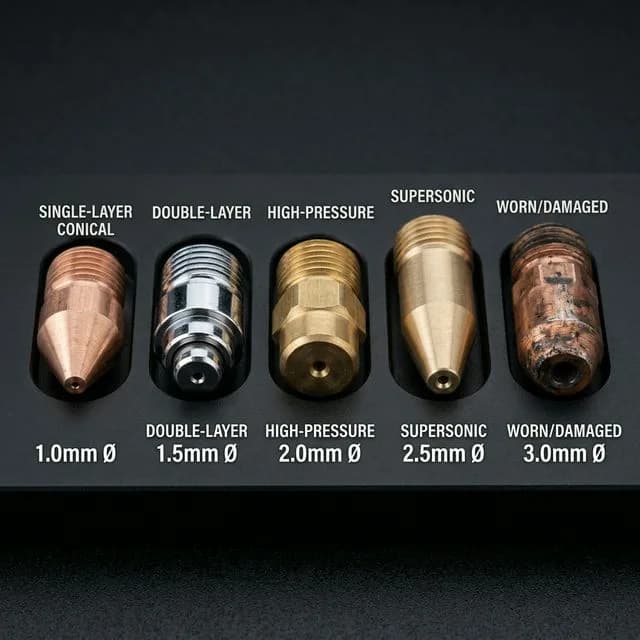

1. Nozzle Types Overview
Classification by Structure
Single-Layer Nozzle
Simple conical design with single gas channel. Gas flows directly through to the orifice.
- Thin to medium thickness (1-10mm)
- General purpose cutting
- Cost-sensitive applications
✗ Less stable gas flow
Double-Layer Nozzle
RecommendedDual-chamber design with inner cutting gas and outer protective gas flow. More uniform gas distribution.
- Medium to thick plate (5-20mm)
- High-quality cutting requirements
- Stainless steel nitrogen cutting
✗ Higher price
High-Speed Nozzle
Convergent-divergent (Laval) design accelerates gas to supersonic speeds through throat section.
- Thin sheet high-speed cutting (≤3mm)
- High-volume production lines
- Maximum throughput priority
✗ Expensive, shorter lifespan

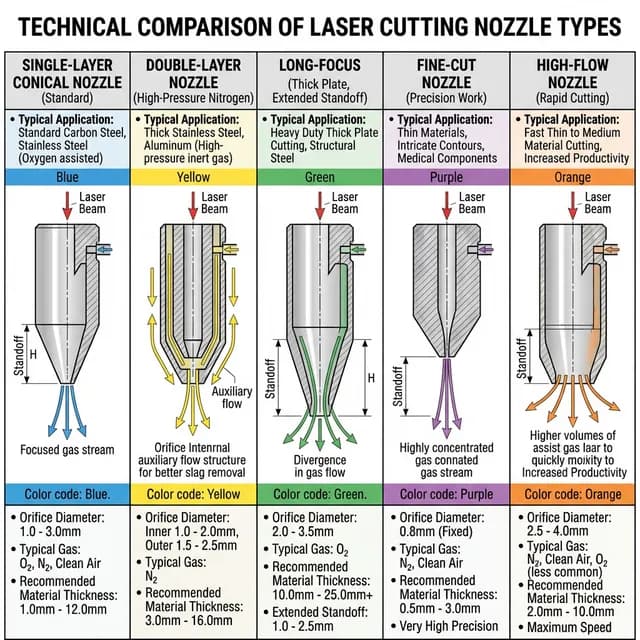

Nozzle Cross-Section Diagrams
Single-Layer Nozzle
Simple conical design with single gas channel. Gas flows directly through to the orifice. Most economical option for general cutting applications.
Classification by Material
| Material | Thermal Conductivity | Wear Resistance | Typical Life | Cost | Best For |
|---|---|---|---|---|---|
| Copper | Excellent | Fair | 120h | Low | General cutting, cost-sensitive applications |
| Chrome-Plated Copper | Excellent | Good | 180h | Medium | High-intensity production, best cost-performance ratio |
| Alloy (Brass/Bronze) | Good | Excellent | 240h | High | Extreme conditions, specialized applications |
* Lifespan values are typical for standard operating conditions. Actual life varies based on power, material, gas type, and maintenance practices.
2. Interactive Nozzle Selector
Not sure which nozzle to choose? Use our interactive decision tree to get personalized recommendations based on your specific cutting requirements.
Interactive Nozzle Selection Guide
Answer a few questions to get personalized nozzle recommendations
Step 1: Select Material Type
3. Nozzle Diameter Selection
Nozzle diameter is critical for cut quality and efficiency. Selecting the correct diameter ensures optimal gas flow, kerf width, and cutting speed.
Diameter Selection by Material and Thickness
| Nozzle Diameter | Material Thickness | Assist Gas | Cutting Characteristics |
|---|---|---|---|
| ø 0.8 - 1.0mm | 0.5-3mm | Oxygen | Thin sheet high-speed, precision cutting |
| ø 1.2 - 1.5mm | 3-8mm | Oxygen / Nitrogen | General purpose, most common |
| ø 1.8 - 2.0mm | 8-15mm | Oxygen / Nitrogen | Medium-thick plate cutting |
| ø 2.5 - 3.0mm | 15-25mm | Oxygen | Thick plate cutting |
| ø 3.5 - 5.0mm | 25mm+ | Oxygen | Ultra-thick plate specialized |
Diameter Selection Principles
- 1.Thinner material = Smaller diameter: Thin sheets benefit from smaller nozzles for concentrated energy and faster speeds
- 2.Thicker material = Larger diameter: Thick plates require larger nozzles to ensure adequate gas flow and penetration
- 3.Nitrogen requires larger diameter: Nitrogen cutting typically needs 0.2-0.5mm larger diameter than oxygen for same thickness
- 4.When in doubt, go larger: Undersized nozzles risk burning out; slightly oversized is safer
Nozzle Diameter vs. Kerf Width
| Nozzle Diameter | Typical Kerf Width | Tolerance | Applications |
|---|---|---|---|
| 0.8mm | 0.08-0.12mm | ±0.02mm | Ultra-thin sheet, high precision |
| 1mm | 0.10-0.15mm | ±0.02mm | Thin sheet, precision cutting |
| 1.2mm | 0.12-0.18mm | ±0.03mm | General thin to medium sheet |
| 1.5mm | 0.15-0.25mm | ±0.03mm | Most common general purpose |
| 1.8mm | 0.20-0.30mm | ±0.04mm | Medium thickness cutting |
| 2mm | 0.25-0.35mm | ±0.04mm | Medium to thick plate |
| 2.5mm | 0.30-0.45mm | ±0.05mm | Thick plate cutting |
| 3mm | 0.35-0.50mm | ±0.05mm | Ultra-thick plate |
* Kerf width varies based on laser power, focus position, and cutting speed. Values shown are typical for standard conditions.
4. Standoff Distance & Focal Position
Standoff distance (nozzle tip to workpiece) and focal position are critical parameters that affect cut quality, gas pressure delivery, and collision risk.
Standoff Distance Visualizer
Adjust standoff distance and focal offset to see optimal positioning
Standoff Distance
The distance between the nozzle tip and the workpiece surface. Affects gas pressure at the cut point and collision risk.
Focal Offset
Position of the laser focal point relative to the nozzle tip. Negative = above surface, Positive = below surface. Typically 0 to +2mm for cutting.
Material-Specific Standoff Recommendations
Carbon Steel (Oxygen)
Stainless Steel (Nitrogen)
Aluminum (Nitrogen)
Non-Metals (Air/Nitrogen)
Capacitive Height Control
Capacitive sensors detect the electrical capacitance between nozzle and workpiece. The control system automatically adjusts Z-axis to maintain constant standoff distance, even on warped or uneven materials.
- Enable capacitive height sensing in control system
- Set target capacitance value (corresponds to desired standoff)
- Calibrate zero point (nozzle touching workpiece)
- Set tracking speed and sensitivity parameters
- Test on sample material and verify standoff accuracy
- • Daily: Check sensor cleanliness, remove dust/debris
- • Weekly: Verify zero point calibration accuracy
- • After nozzle change: Mandatory recalibration required
- • After collision: Check sensor and recalibrate
5. Gas Flow & Pressure Requirements
Proper gas flow and pressure are essential for effective cutting. Insufficient flow leads to poor slag removal and oxidation, while excessive flow wastes gas without improving quality.
Gas Flow Rates by Nozzle Diameter
| Nozzle Ø | Oxygen Flow | O₂ Pressure | Nitrogen Flow | N₂ Pressure | Air Flow | Air Pressure |
|---|---|---|---|---|---|---|
| 0.8mm | 40-80 L/min | 0.5-0.8 bar | 80-120 L/min | 8-10 bar | 60-100 L/min | 6-8 bar |
| 1mm | 50-100 L/min | 0.5-1.0 bar | 100-150 L/min | 10-12 bar | 80-120 L/min | 8-10 bar |
| 1.2mm | 80-120 L/min | 0.8-1.2 bar | 120-180 L/min | 10-12 bar | 100-150 L/min | 8-10 bar |
| 1.5mm | 100-200 L/min | 1.0-1.5 bar | 150-300 L/min | 12-15 bar | 120-200 L/min | 10-12 bar |
| 1.8mm | 150-250 L/min | 1.2-1.8 bar | 250-400 L/min | 12-16 bar | 180-280 L/min | 10-14 bar |
| 2mm | 200-350 L/min | 1.5-2.0 bar | 300-500 L/min | 15-18 bar | 250-400 L/min | 12-16 bar |
| 2.5mm | 300-500 L/min | 1.8-2.5 bar | 500-800 L/min | 18-22 bar | 400-600 L/min | 15-20 bar |
| 3mm | 400-700 L/min | 2.0-3.0 bar | 700-1000 L/min | 20-25 bar | 500-800 L/min | 18-22 bar |
* Flow rates and pressures are typical values. Adjust based on material thickness, laser power, and cutting speed. Higher values within range for thicker materials.
Gas Purity Requirements
Pressure Optimization Tips
- •Start with recommended pressure, then fine-tune based on cut quality
- •Too low: Poor slag removal, oxidation, rough edges
- •Too high: Turbulent flow, excessive gas consumption, no quality gain
- •Monitor gas consumption to optimize operational costs
- •Use flow meters and pressure gauges to maintain consistent parameters
Related Guide
For comprehensive information on assist gas selection, flow rates, and pressure optimization:
→ Assist Gas Selection Chart & Guide6. Nozzle Alignment & Centering
Proper nozzle alignment ensures the laser beam passes through the center of the nozzle orifice. Misalignment causes uneven cuts, increased nozzle wear, and potential damage to the cutting head.
Alignment Procedure
Install Nozzle
Thread nozzle onto cutting head and tighten to manufacturer specified torque
Typical torque: 5-8 Nm. Do not overtighten.
Red Light Pointer Check
Activate red light pointer and verify beam passes through nozzle center
Red dot should be centered in nozzle orifice when viewed from below
Tape Burn Test
Place masking tape over nozzle, fire low power pulse (50-100W, 1-2ms)
Burn mark should be circular and centered. Elliptical or off-center indicates misalignment.
Inspect Pattern
Examine burn pattern for concentricity
Perfect circle = aligned. Oval or eccentric = adjust cutting head.
Adjust if Needed
Use cutting head adjustment screws to center beam
Refer to cutting head manual for specific adjustment procedure
Re-verify
Repeat tape burn test after adjustment
Continue adjusting until burn pattern is perfectly centered
Document
Record alignment date and nozzle serial number
Maintain alignment log for quality control
Signs of Misalignment
- ⚠Cut edge is angled or beveled instead of perpendicular
- ⚠Inconsistent cut quality around part perimeter
- ⚠Excessive nozzle wear on one side
- ⚠Burn marks or damage on nozzle interior
- ⚠Elliptical instead of circular burn pattern on tape test
Alignment Best Practices
- ✓Perform alignment check after every nozzle change
- ✓Re-check alignment weekly or after any collision
- ✓Keep alignment tools (tape, gauge) readily accessible
- ✓Document alignment results in maintenance log
- ✓Train all operators on proper alignment procedure
7. Nozzle Comparison Tool
Compare different nozzle specifications side-by-side to make informed purchasing decisions. Consider total cost of ownership, not just initial price.
Nozzle Comparison Matrix
Select 2-4 nozzles to compare specifications side-by-side
| Specification | Single Layer Copper 1.5mm | Double Layer Chrome-Copper 1.5mm |
|---|---|---|
| Type | Single Layer | Double Layer |
| Material | Copper | Chrome-Plated Copper |
| Diameter | 1.5 mm | 1.5 mm |
| Typical Lifespan | 120 hours | 234 hours |
| Cost (USD) | $35 | $85 |
| Cost per Hour | $0.29/hr | $0.36/hr |
| Applications |
|
|
| Advantages |
|
|
| Disadvantages |
|
|
💡 Comparison Insights
- • Best Value: Single Layer Copper 1.5mm (lowest cost per hour)
- • Longest Life: Double Layer Chrome-Copper 1.5mm
- • Most Economical: Single Layer Copper 1.5mm (lowest initial cost)
8. Maintenance & Lifespan Management
Proper maintenance extends nozzle life and maintains cut quality. Regular inspection and timely replacement prevent production issues and minimize downtime.

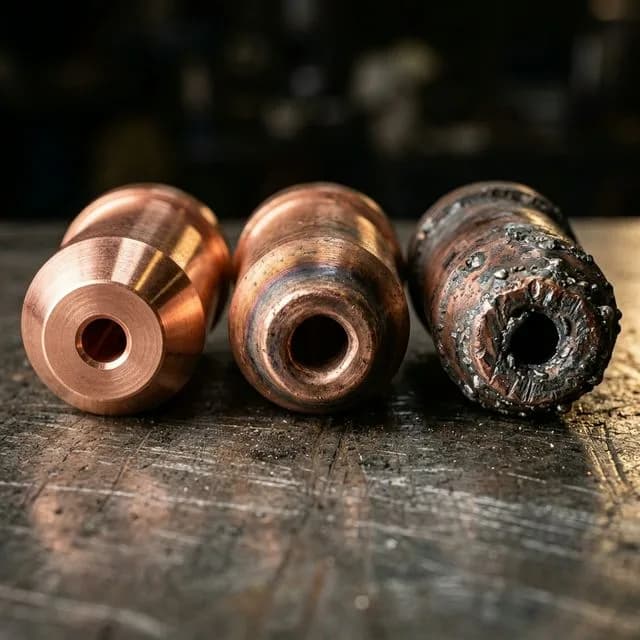

Nozzle Wear Progression
Track nozzle condition based on operating hours
Nozzle is in excellent condition. Continue normal operation.
Recommended Actions:
- •Perform routine cleaning
- •Monitor cut quality
- •Document usage hours
Wear Stage Timeline
Inspection Checklist
Inspection Checklist
- 1.Visual Inspection
Check for deformation, cracks, burn marks, or spatter buildup
- 2.Orifice Diameter Measurement
Use pin gauge or microscope. Replace if diameter increased by 10%
- 3.Concentricity Check
Verify laser beam and nozzle orifice alignment with tape burn test
- 4.Thread Condition
Inspect threads for wear or damage that could cause loosening
Life Extension Tips
- ✓Daily Cleaning
Wipe nozzle exterior with soft cloth to remove spatter
- ✓Collision Avoidance
Enable collision detection sensors, set appropriate safety height
- ✓Proper Storage
Store in dry, dust-free container to prevent scratches
- ✓Scheduled Replacement
Replace proactively before complete failure affects quality
Common Failure Causes
Nozzle impacts workpiece or cutting table causing deformation or breakage.
Prevention: Enable anti-collision protection, regularly check height sensors, proper Z-axis calibration
Molten metal spatter adheres to nozzle interior, disrupting gas flow.
Prevention: Optimize cutting parameters, use anti-spatter coating, clean regularly
High-temperature gas flow gradually enlarges orifice diameter over time.
Management: Track operating hours, measure diameter regularly, establish replacement schedule
Related Tool
Calculate nozzle lifespan and replacement schedule:
→ Nozzle Life Prediction Calculator9. Brand Comparison & Compatibility
Understanding brand specifications and compatibility helps with sourcing, inventory management, and finding cost-effective alternatives.
Thread Specifications & Compatibility
| Brand/Series | Thread Specification | Compatible With | Notes |
|---|---|---|---|
| Precitec ProCutter | M11×1 |
| Most common standard, widely available |
| Raytools BM Series | M14×1 |
| Second most common, good availability |
| WSX Standard | M11×1 / M12×1 |
| Check specific model, varies by series |
| Bodor OEM | M14×1 |
| Usually compatible with Raytools |
| Legacy Equipment | M16×1.5 |
| Less common, check manufacturer specs |
Major Brand Overview
Precitec (Germany)
Premium brand, excellent quality, higher price point. ProCutter series widely used, HighSpeed series for thin sheet applications.
Raytools (Switzerland)
High market share, good cost-performance ratio. BM series general purpose, AG series adaptive nozzles with auto height adjustment.
Chinese Brands (WSX, Bodor, etc.)
Competitive pricing, improving quality. Good option for cost-sensitive applications. Verify thread compatibility before purchasing.
Cross-Brand Replacement Guide
- Thread specification must match exactly
- Nozzle height (body length) may vary between brands
- Standoff distance may need recalibration
- Gas flow characteristics can differ slightly
- Keep spare nozzles from same brand/batch when possible
- Test alternative brands on non-critical jobs first
- Document any parameter adjustments needed
- Consider total cost including performance, not just price
Price Disclaimer: Nozzle prices vary significantly based on supplier, order quantity, and market conditions. Values mentioned in this guide are approximate as of 2025 for reference only. Contact suppliers for current pricing.
10. Troubleshooting Common Issues
Quick diagnostic guide for nozzle-related cutting problems. Identifying root causes early prevents quality issues and equipment damage.
⚠Symptom 1: Angled or Beveled Cut Edge
- Adjust nozzle position or replace nozzle
- Check cutting head installation and alignment
- Perform optical path centering calibration
⚠Symptom 2: Sudden Quality Degradation
- Clean or replace nozzle
- Check gas purity and pressure
- Verify standoff distance is correct
⚠Symptom 3: Frequent Collision Alarms
- Replace deformed nozzle immediately
- Calibrate capacitive height sensor
- Check Z-axis program settings and limits
⚠Symptom 4: Nozzle Burning/Damage
- Use larger diameter nozzle
- Review cutting parameters (power, speed) for appropriateness
- For reflective materials, use anti-reflective nozzles
- Increase standoff distance for aluminum/copper
⚠Symptom 5: Excessive Spatter on Cut Edge
- Increase gas pressure within recommended range
- Adjust standoff distance (typically reduce for more pressure)
- Verify nozzle orifice is not clogged
- Consider switching to double-layer nozzle for better gas flow
Related Guides
For more comprehensive troubleshooting:
Related Tools & Guides
Calculators & Tools
Estimate nozzle lifespan and replacement schedule based on usage conditions
Calculate cutting kerf width based on nozzle diameter and parameters
Determine required gas flow rates and monthly consumption
Technical Guides
Comprehensive guide to selecting and optimizing assist gas
Complete parameter tables for different materials and thicknesses
Understand focal point positioning and its impact on cut quality
Process Optimization
Recommended cutting speeds for various materials and thicknesses
Advanced techniques for maximizing cutting efficiency and quality
Choose appropriate laser power for your application requirements
Maintenance & Safety
Complete maintenance checklist including nozzle replacement intervals
Understand laser safety standards and protective requirements
Best practices for safe laser cutting operations
- Precitec Technical Manuals - ProCutter and HighSpeed nozzle series specifications
- Raytools Product Catalogs - BM series and adaptive nozzle technical data
- Industry standards and best practices from laser cutting professionals
- Field data from production environments and equipment manufacturers
Last Updated: November 2, 2025
Disclaimer: This guide provides general recommendations based on industry standards and manufacturer specifications. Actual parameters may vary based on specific equipment, material conditions, and application requirements. Always consult your equipment manufacturer's documentation and perform test cuts before production runs. LaserSpecHub is not responsible for cutting quality or equipment damage resulting from parameter selection.
