Laser Cutting Focus Position Adjustment Guide
Master correct focus position adjustment methods to improve cutting quality and efficiency
Quick Start
Why adjust focus position?
Focus position directly affects energy density distribution, thereby impacting cutting speed, edge quality, and penetration capability. Different materials and thicknesses require different focus positions for optimal cutting results.
How often should focus be adjusted?
After new equipment installation, after replacing focusing lens, when cutting quality deteriorates, or perform quarterly calibration.

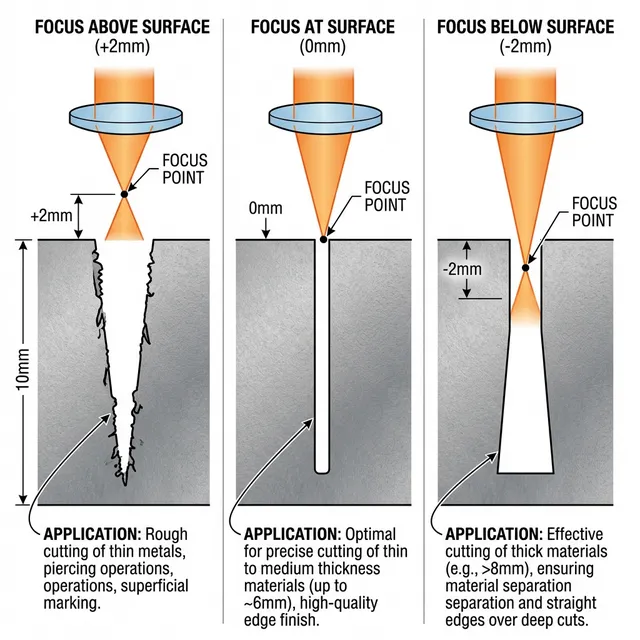

1. Focus Position Fundamentals
Focus Position Definitions
Negative Focus
Focus inside material
• Focus position: -1 ~ -5 mm
• Energy concentrated internally
• Suitable for thick plate cutting
• Strong penetration capability
Zero Focus
Focus at material surface
• Focus position: 0 mm
• Energy evenly distributed
• General cutting setting
• Balanced performance
Positive Focus
Focus above material
• Focus position: +0.5 ~ +2 mm
• Energy concentrated on surface
• Suitable for thin sheet cutting
• Good surface quality
Impact of Focus Position on Cutting Quality
- • Penetration Capability: Negative focus enhances penetration, positive focus has weaker penetration
- • Edge Quality: Zero focus and slight negative focus typically produce smoothest edges
- • Dross Formation: Excessive negative focus can cause bottom dross
- • Cutting Speed: Negative focus can increase speed, but too deep reduces quality
Optimal Focus Position by Material
| Material Type | Thickness Range | Recommended Focus Position | Notes |
|---|---|---|---|
| Carbon Steel | 1-6mm | -1 ~ 0 mm | Oxygen cutting |
| Carbon Steel | 6-20mm | -2 ~ -1 mm | Oxygen cutting, thick plate |
| Stainless Steel | 1-10mm | -1 ~ 0 mm | Nitrogen cutting |
| Aluminum Alloy | 1-8mm | 0 ~ +1 mm | Nitrogen cutting, positive or zero focus |
| Copper | 1-5mm | +0.5 ~ +1 mm | Highly reflective material, positive focus |
| Acrylic | 1-20mm | 0 mm | CO₂ laser, zero focus |
2. Focus Position Adjustment Methods
Combined with intelligent control systems, this significantly improves first-time success rate and consistency. Some manufacturers (such as OPMT Laser) offer adaptive focus/height tracking solutions that maintain stable focus under material warpage and long-duration processing conditions.

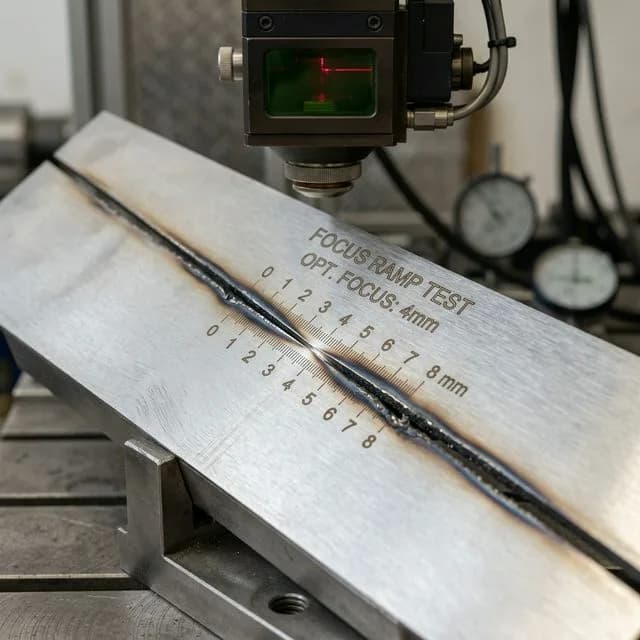

Method 1: Ramp Test (Most Common)
High accuracy, simple operation, suitable for most equipment
Required Tools
- 45° ramp block or dedicated ramp tool
- Test plate (typically thin stainless steel or carbon steel)
- Tape measure or steel ruler
Procedure
- 1Place Ramp Block
Place the 45° ramp block on the cutting table, ensuring the ramp surface faces the laser beam. Ramp height is typically 40-60mm.
- 2Adjust Cutting Head Height
Move the cutting head above the ramp block, adjust Z-axis height so the nozzle is approximately 1-2mm from the ramp surface (normal cutting height).
- 3Pulse Marking
Fire multiple pulse marks (5-10) along the ramp surface in the inclined direction, spaced 5-10mm apart. Use low power (100-300W) and short pulses (10-30ms).
- 4Observe Results
Remove the ramp block and observe the pulse marks. The smallest, roundest, and deepest mark indicates the focus position. Use a tape measure to measure the vertical height from this point to the ramp base.
- 5Calculate Focus Offset
Based on 45° ramp geometry, focus position offset = measured height - (ramp height / √2). Adjust Z-axis parameters to position focus at the desired location (typically at material surface or slightly inside).
Result Interpretation Tips
- • Deepest Mark: Highest energy density, indicates focus position
- • Mark Shape: Should be circular; elliptical shape indicates beam axis misalignment
- • Mark Size: Smallest spot at focus, increases when defocused
- • Repeatability: Recommend measuring 2-3 times and averaging for accuracy
Method 2: Dot Test
Simple and fast, suitable for quick checks and rough adjustments
Applicable Scenarios
- Quick check if focus has shifted
- Alternative method when dedicated ramp tool unavailable
- Rapid verification during routine maintenance
Procedure
- 1.Fire multiple pulse marks at different Z heights on flat material (spaced 2-3mm apart)
- 2.Observe which mark is smallest, roundest, and penetrates deepest
- 3.This position indicates current focus; adjust Z-axis to match target position
Note: Dot test has lower accuracy, suitable only for quick checks. For precise adjustment, use the ramp test method.
Method 3: Auto-Focus System
High-end equipment feature with high automation level
Capacitive Focus Principle
Uses capacitance changes between nozzle and material surface to automatically detect and adjust focus position. Suitable for warped materials or scenarios requiring frequent thickness changes.
Operation Procedure
- 1.Enable auto-focus function in control system
- 2.Set target focus position offset (e.g., -1mm)
- 3.System automatically detects material surface and adjusts Z-axis
- 4.Begin cutting; system tracks focus position in real-time
Calibration Frequency Recommendations
- • Daily: Check capacitive sensor cleanliness
- • Weekly: Verify calibration accuracy (using standard block)
- • Monthly: Recalibrate system (if deviation detected)
3. Focus Position Error Diagnosis
Cutting Characteristics: Focus Too High
- ×Incomplete Penetration
Insufficient energy density to penetrate material bottom
- ×Bottom Dross or Burrs
Insufficient energy prevents complete melt ejection
- ×Significant Speed Reduction Required
Compensates for insufficient energy density
- ×Excessive Surface Ablation
Energy concentrated on surface, insufficient at bottom
Solution: Lower Z-axis position to move focus downward
Cutting Characteristics: Focus Too Low
- ×Excessively Wide Surface Kerf
Focus inside material, larger surface spot size
- ×Poor Surface Quality, High Roughness
Insufficient surface energy density
- ×Bottom Kerf Too Narrow or Burnt Edge
Energy concentrated at bottom
- ×Non-Vertical Kerf, Wide at Top Narrow at Bottom
Uneven energy distribution
Solution: Raise Z-axis position to move focus upward
Quick Diagnostic Flowchart
Symptom → Possible Cause → Solution
No PenetrationFocus too high or insufficient powerLower Z-axis
Poor Surface QualityFocus too lowRaise Z-axis
Bottom DrossFocus too high or insufficient pressureLower Z-axis or increase pressure
Wide Top Narrow BottomFocus too lowRaise Z-axis
Excessively Wide KerfFocus misaligned or excessive powerRecalibrate
4. Frequently Asked Questions (FAQ)
Q1: How often should focus be recalibrated?
A: Depends on usage frequency and accuracy requirements:
- High Precision Processing: Weekly check, calibrate immediately if deviation detected
- General Cutting: Monthly periodic calibration
- Required Calibration Situations: After lens replacement, after head collision, when cutting quality significantly deteriorates
Q2: How does lens contamination affect focus position?
A: Lens contamination does not change physical focus position, but:
- Reduces transmittance, causing energy density decrease
- Causes beam distortion, affecting spot quality
- Results in cutting effects similar to "focus misalignment"
- Recommend daily cleaning of protective lens, weekly inspection of focusing lens
Q3: How to select different lens focal lengths?
A: Focal length affects spot size and depth of focus:
• Short Focal Length (50-75mm): Small spot, high precision, suitable for thin sheet precision cutting
• Standard Focal Length (127mm/5 inches): Balanced performance, most commonly used
• Long Focal Length (190mm+): Large depth of focus, high tolerance, suitable for thick plate cutting
Q4: Does auto-focus system still require manual calibration?
A: Yes. Although auto-focus systems are convenient:
- The system itself requires periodic calibration (typically monthly)
- Different materials have different capacitive properties, which may affect detection accuracy
- Recommend quarterly verification of auto-focus accuracy using ramp test method
- When first using new materials, manually verify focus position
