Laser Cutting Process Optimization Guide

Engineering-implementable optimization methods around four key objectives: speed, quality, cost, and utilization

1. Overall Process Optimization Approach

Process Optimization Workflow1. Define ObjectiveSpeed / Quality / Cost2. Baseline TestingEstablish reference3. Single-FactorSweep parameters4. Multi-FactorTest combinations5. First-ArticleISO 9013 validationPass?YesNo6. Database EntryVersion controlContinuousMonitor & RefineLegend:Process StepValidationDecision Point
Optimization Objective Definition
  • Speed priority: Maximize throughput while meeting quality requirements
  • Quality priority: Optimize parameters with edge quality grade and dimensional accuracy as constraints
  • Cost priority: Balance gas, electricity, depreciation and labor costs
Parameter Interactions

Power, speed, focus, gas pressure and nozzle diameter are coupled and require coordinated optimization rather than single-point adjustment. Changing any single parameter affects multiple aspects of the cutting process.

Implementation Steps
  1. Baseline testing: Establish standard part parameter baseline with current settings
  2. Single-factor sweep: Small-range scanning around focus/speed/pressure (±10-20% from baseline)
  3. Multi-factor combination: Lock candidate combinations for comparative test cuts
  4. First-article confirmation: Accept according to ISO 9013 quality grade with quantitative measurements
  5. Database entry: Parameter library with version control and validation date

Parameter Coupling Network

Parameter Interaction NetworkLine thickness indicates coupling strengthCuttingSpeedLaserPowerFocusPositionGasPressureNozzleDiameterMaterialThicknessStrongStrongStrongMediumMediumCoupling Strength:Strong (direct impact)Medium (moderate impact)Weak (indirect impact)Note: Changing any parameter requires coordinated adjustment of coupled parameters for optimal results

The diagram above illustrates how cutting parameters are interconnected. Strong coupling (thick lines) indicates that changing one parameter requires immediate adjustment of the coupled parameter. For example, increasing cutting speed requires proportional increase in laser power to maintain energy density. Medium and weak couplings show secondary effects that may require fine-tuning during optimization.

Design of Experiments (DOE) Methodology

For complex optimization involving multiple parameters, use factorial design or Taguchi methods to reduce test iterations while identifying optimal combinations:

  • Full Factorial: Test all combinations of 2-3 parameters at 2-3 levels each. Example: Power (3kW, 6kW) × Speed (2, 3, 4 m/min) × Focus (-1, 0, +1mm) = 18 test cuts.
  • Fractional Factorial: Reduce tests by 50-75% using orthogonal arrays while maintaining statistical validity. Suitable for 4+ parameters.
  • One-Factor-at-a-Time (OFAT): Simple but inefficient. Misses interaction effects between parameters. Use only for initial screening.

Best Practice: Start with OFAT to identify parameter ranges, then use factorial design to optimize interactions. Document all test results with photos and measurements for future reference.

2. Cutting Speed Optimization

Limiting Factors Analysis

• Power limit and energy density
• Material thermal conductivity and melt pool stability
• Mechanical acceleration and stopping distance
• Gas dynamics and dross ejection efficiency

Speed Optimization Methods

• Build power-speed matching curves, identify plateau and instability regions
• Thickness-speed quick reference: Use parameter tables with ±10% fine-tuning
• Corner/small radius deceleration: Segmented speed curves or curvature-adaptive
• Flying cutting: 20-30% efficiency gain on thin sheet continuous patterns

Speed Optimization Case Studies

• 3mm stainless steel: At focus -0.5mm, nitrogen 14bar, speed increased 2.6 → 3.2 m/min while maintaining Grade 2 edge quality
• 1.5mm carbon steel: Oxygen cutting nozzle ø1.2 → ø1.0, +12% speed with controlled oxidation edge

3. Cutting Quality Optimization

Quality Grades & Evaluation

ISO 9013 defines 4 quality grades based on surface roughness (Ra), perpendicularity tolerance (u), dross attachment, and heat-affected zone (HAZ) width:
  • Grade 1: Precision work, Ra ≤6.3μm, u ≤0.3mm, no dross
  • Grade 2: General fabrication, Ra ≤10μm, u ≤0.5mm, minimal dross
  • Grade 3: Structural work, Ra ≤12.5μm, u ≤0.8mm, removable dross
  • Grade 4: Non-critical, Ra ≤20μm, u ≤1.2mm, dross acceptable

Measurement Methodology

Surface Roughness (Ra): Use profilometer or roughness tester. Measure at mid-thickness, 3 locations per sample.
Perpendicularity (u): Measure deviation from vertical using square or angle gauge. Calculate u = t × tan(α) where t = thickness, α = angle deviation.
Dross: Visual inspection and tactile test. Weigh dross per meter of cut for quantitative assessment.
HAZ Width: Metallographic cross-section with etching to reveal microstructure change. Measure under microscope.

Comprehensive Quality Troubleshooting

The interactive table below provides detailed troubleshooting for common quality issues. Click any issue to expand full diagnostic procedures, root causes ranked by likelihood, and solutions with effectiveness ratings.

Burrs on Cut Edge

MAJORFrequency: 35% of cases

Dross Formation on Bottom Edge

MAJORFrequency: 28% of cases

Non-Perpendicular Cut Surface (Taper)

CRITICALFrequency: 15% of cases

Rough Edge Surface (Excessive Striations)

MAJORFrequency: 22% of cases

Heat-Affected Zone (HAZ) Too Large

MINORFrequency: 12% of cases

Incomplete Penetration (Breakthrough Failure)

CRITICALFrequency: 18% of cases

4. Material Utilization Optimization

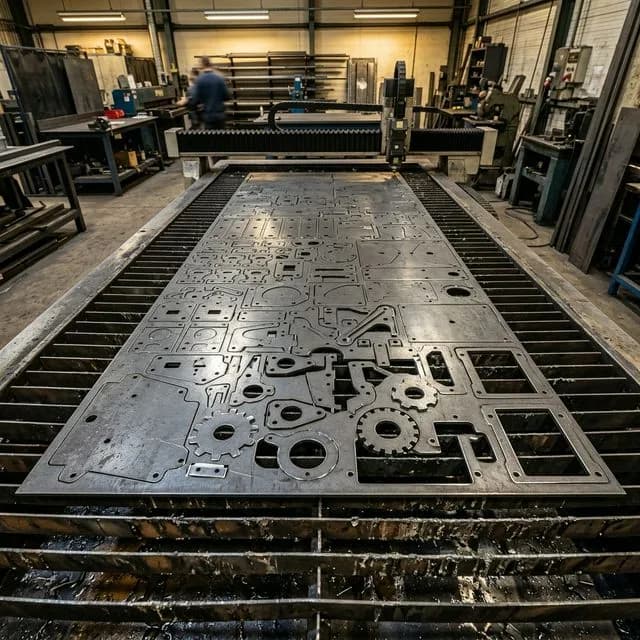

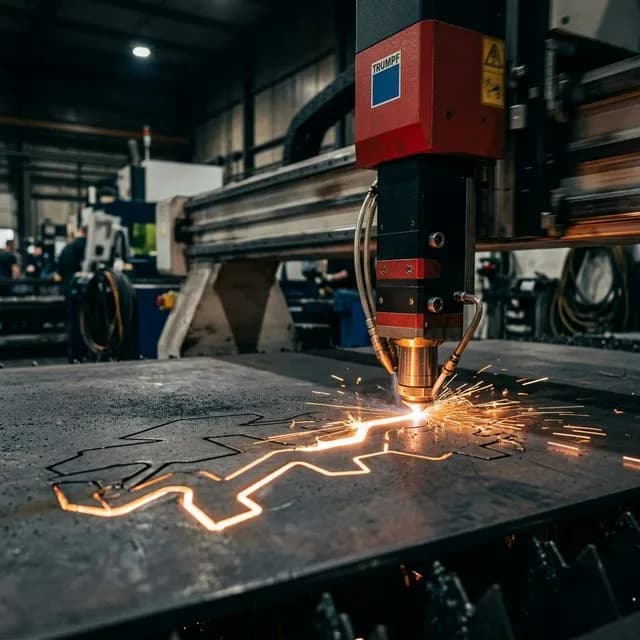

Nesting Strategy

• Large parts first, corner utilization, common-line cutting
• Unified part orientation to reduce direction changes
• Automated nesting with manual fine-tuning

Path Optimization

• Cutting sequence: Inner → outer, small parts priority
• Pierce locations in scrap zones
• Lead-in/out optimization and micro-joint design

5. Cost Optimization

Typical Cost BreakdownMedium-thickness steel cutting with nitrogen38%24%17%12%9%OperatingCostsAssistElectricalConsumablesLaborMachine

Typical cost distribution for medium-thickness steel cutting with nitrogen assist gas. Actual percentages vary by material, thickness, and gas type.

Assist Gas25-50% (typical: 38%)

Optimization Strategies:
  • Switch from nitrogen to oxygen for mild steel (90-95% gas cost reduction)
  • Optimize gas pressure - avoid over-pressurization (each 2 bar excess = 15-20% waste)
  • Implement gas flow monitoring and leak detection
  • Consider on-site nitrogen generation for high-volume operations (payback 1-3 years)
  • Use air assist for non-metals and non-critical applications
Savings Potential:30-60% reduction possible through gas strategy optimization

Electrical Power18-32% (typical: 24%)

Optimization Strategies:
  • Maximize cutting speed to reduce cycle time per part
  • Minimize idle time - implement job scheduling to reduce laser-on standby
  • Use power-saving mode during extended breaks
  • Optimize laser power - avoid using more power than necessary for thickness
  • Consider time-of-use electricity rates for scheduling production
Savings Potential:15-25% reduction through speed optimization and idle time management

Consumables (Nozzles, Lenses, Windows)12-22% (typical: 17%)

Optimization Strategies:
  • Implement preventive maintenance schedule to avoid catastrophic failures
  • Optimize pierce strategies - reduce pierce count through common-line cutting
  • Use protective film on lenses to extend cleaning intervals
  • Track consumable life hours - replace based on data not guesswork
  • Train operators on proper nozzle handling to prevent damage
  • Maintain clean work environment to reduce lens contamination
Savings Potential:20-40% reduction through lifecycle management and pierce optimization

Labor (Operator and Programming)8-18% (typical: 12%)

Optimization Strategies:
  • Invest in CAM/nesting software to reduce programming time by 40-60%
  • Standardize parameter libraries - eliminate trial-and-error programming
  • Train operators for multi-tasking (operate multiple machines)
  • Implement automated loading/unloading for lights-out operation
  • Use remote monitoring to reduce operator attendance time
Savings Potential:25-50% reduction through automation and software tools

Machine Depreciation6-15% (typical: 9%)

Optimization Strategies:
  • Maximize machine utilization - aim for 60-80% productive time
  • Extend machine life through preventive maintenance
  • Consider leasing vs purchasing for tax and cash flow benefits
  • Right-size equipment - avoid over-capability for typical jobs
Savings Potential:Fixed cost - optimize through utilization maximization

Cost Calculation Formulas

Gas Cost per Part:
Cost = (Cutting Time × Flow Rate × Gas Price) + (Pierce Count × Pierce Gas Volume × Gas Price)

Example: 5 min cutting @ 15 m³/h flow + 20 pierces @ 0.1 m³ each, nitrogen @ $0.50/m³ = (5/60 × 15 × 0.50) + (20 × 0.1 × 0.50) = $0.625 + $1.00 = $1.625/part

Power Cost per Part:
Cost = (Laser Power × Time × Efficiency Factor × Electricity Rate) / 1000

Example: 6kW laser, 5 min cutting, 30% efficiency, $0.12/kWh = (6 × 5/60 × 0.30 × 0.12) = $0.018/part

Consumable Cost per Part:
Cost = (Nozzle Cost / Nozzle Life Hours × Part Time) + (Lens Cost / Lens Life Hours × Part Time)

Example: $15 nozzle / 100 hrs + $120 lens / 1000 hrs, 5 min part = ($15/100 + $120/1000) × 5/60 = $0.022/part

6. Specialized Process Optimization

Material-Specific Guidelines

Different materials require significantly different parameter strategies. Select a material below to view comprehensive optimization guidelines including gas requirements, parameter ranges, special considerations, and common challenges.

Mild Steel (Carbon Steel)

Assist Gas Requirements:

Type: Oxygen (O2)
Purity: 99.5%+ recommended
Pressure Range: 0.5-6 bar
Optimal: 2.5 bar

Focus Position:

Range: -4 to 1 mm
Optimal: -1 mm

Speed Adjustment:

Baseline speed. Up to 50% faster than nitrogen cutting on same material.

Power Adjustment:

Standard power levels. Exothermic oxygen reaction reduces power requirement by 20-30% vs nitrogen.

Quality Grade Achievable:

ISO 9013 Grade 2-3 typical. Grade 1 difficult due to oxidation layer.

Special Considerations:

  • Oxidation layer on cut edge is normal and acceptable for most applications
  • Oxide layer can be painted or powder coated without removal
  • Exothermic reaction generates additional heat - monitor HAZ on thin materials
  • Lower gas cost compared to nitrogen (typically 90-95% savings)
  • Edge may require deburring for precision assemblies

Common Challenges:

  • Dross formation on bottom edge at high speeds
  • Overburn at sharp corners due to exothermic reaction
  • Oxide layer thickness varies with cutting parameters
  • Material composition variations affect cutting consistency

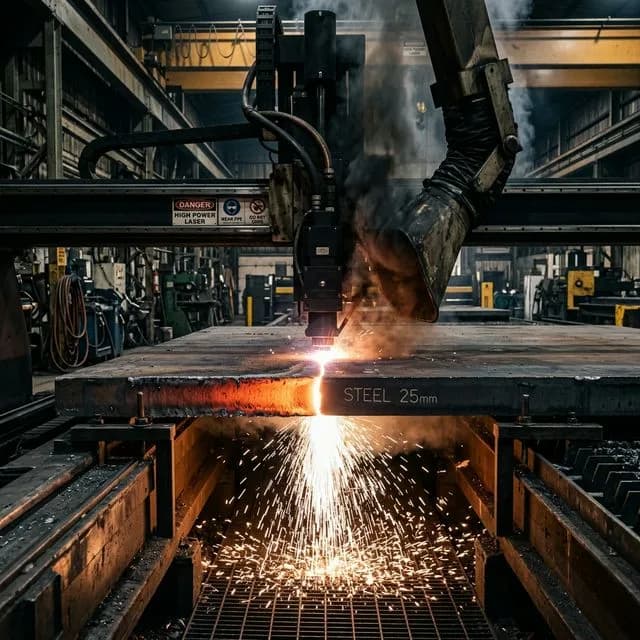

Thick Plate Cutting (>20mm)

Multi-Pass Strategy: For plates >25mm, consider 2-pass cutting: rough cut at high speed, finish cut at reduced speed for quality.
Oxygen Pressure Progression: Start pierce at low pressure (1-2 bar), ramp to cutting pressure (4-6 bar) over 0.5-1 second to prevent blowback.
Focus Position: Use negative focus (-2 to -4mm) to position focal waist at mid-thickness for better penetration.
Speed Ramping: Reduce speed by 40-60% compared to thin plate. Monitor for incomplete penetration at corners.

Tube and Pipe Cutting

Rotary Axis Calibration: Verify chuck concentricity and rotary axis alignment before production. Runout >0.2mm causes quality issues.
Gas Flow Considerations: Internal assist gas delivery through tube end or external nozzle. Internal delivery more efficient for thin-wall tubes.
Speed Adjustment: Reduce linear speed by 20-30% vs flat sheet due to curved surface geometry and reduced gas effectiveness.
Programming Tips: Use tube-specific CAM software for automatic collision detection and optimal nozzle positioning.

7. Process Database Development

Recommended Database Schema

Field NameData TypeRequiredDescriptionExample Value
Material TypestringYesMaterial categoryMild Steel
Material GradestringYesSpecific grade or alloyASTM A36
ThicknessnumberYesMaterial thickness in mm3.0
Laser TypestringYesLaser technologyFiber Laser
Laser PowerstringYesRated laser power6kW
Cutting SpeednumberYesCutting speed in m/min3.5
Assist Gas TypestringYesType of assist gasOxygen
Gas PressurenumberYesGas pressure in bar2.5
Gas PuritystringNoGas purity percentage99.5%
Focus PositionnumberYesFocus position in mm (negative = below surface)-1.0

Showing 10 of 26 recommended fields. Complete schema includes quality metrics, validation info, and notes fields.

Data Collection & Validation

First-Article Testing: Conduct quantitative measurements on first part: kerf width (±0.05mm), edge roughness Ra (profilometer), perpendicularity (angle gauge), HAZ width (microscope).
Photo Documentation: Take standardized photos of cut edge at 3 locations (entry, mid, exit) for each quality grade. Use consistent lighting and magnification.
Operator Feedback: Record ease of setup, any issues encountered, and subjective quality assessment. Operator experience often reveals subtle problems.
Production Validation: Run minimum 10 parts to verify consistency. Calculate first-pass yield rate and cycle time variance.

Version Control & Management

Version Numbering: Use semantic versioning (v1.0, v1.1, v2.0). Increment minor version for parameter tweaks, major version for significant changes.
Change Tracking: Log all parameter changes with date, operator, reason, and results. This audit trail enables root cause analysis of quality issues.
Approval Workflow: Require supervisor approval for new parameters before production use. Prevents untested parameters from causing scrap.
Backup & Recovery: Export database weekly to external storage. Cloud backup recommended for multi-site operations.

Statistical Process Control (SPC)

Implement SPC to monitor parameter stability and detect drift before quality issues occur:

  • Control Charts: Plot key metrics (cutting speed, gas pressure, edge roughness) over time. Set control limits at ±3 standard deviations from mean.
  • Trend Analysis: Identify gradual parameter drift (e.g., lens contamination causing power loss). Address before reaching control limits.
  • Capability Analysis: Calculate Cpk for critical dimensions. Target Cpk ≥1.33 for process capability. Cpk <1.0 indicates process cannot meet specifications consistently.
  • Quarterly Review: Analyze SPC data to identify improvement opportunities, update parameter targets, and retire obsolete entries.

8. Continuous Improvement & KPI Monitoring

Systematic monitoring of key performance indicators (KPIs) enables data-driven optimization and early detection of process degradation. Track these metrics to quantify improvement and justify optimization investments.

First-Pass Yield Rate

Description:

Percentage of parts that meet quality specifications without rework or scrap

Calculation Method:
(Parts Meeting Spec / Total Parts Produced) × 100%
Target Value:

≥95% for established processes, ≥90% for new processes

Measurement Frequency:Daily or per job
Improvement Actions:
  • Analyze root causes of rejects using Pareto analysis
  • Validate and lock parameter database for proven materials
  • Implement first-article inspection protocol
  • Train operators on quality checkpoints
  • Review and update parameters quarterly based on yield data

Average Cycle Time

Description:

Total time from job start to completion including setup, cutting, and part removal

Calculation Method:
Total Job Time / Number of Parts Produced
Target Value:

Trend downward over time. Benchmark against similar jobs.

Measurement Frequency:Per job
Improvement Actions:
  • Optimize nesting to reduce cutting path length
  • Implement common-line cutting to reduce pierce count
  • Standardize setups to reduce changeover time
  • Use automated loading/unloading where feasible
  • Analyze time breakdown: setup vs cutting vs handling

Material Utilization Rate

Description:

Percentage of sheet material converted to finished parts vs scrap

Calculation Method:
(Part Area / Sheet Area) × 100%
Target Value:

≥85% for automated nesting, ≥80% for manual nesting

Measurement Frequency:Per sheet or per job
Improvement Actions:
  • Invest in advanced nesting software
  • Implement remnant tracking and reuse system
  • Batch similar parts to improve nesting density
  • Use common-line cutting where possible
  • Track utilization by material type to identify improvement opportunities

Scrap Rate

Description:

Percentage of material or parts that become scrap due to quality defects

Calculation Method:
(Scrap Weight or Value / Total Material Weight or Value) × 100%
Target Value:

≤2% for established processes, ≤5% for new processes

Measurement Frequency:Weekly or monthly
Improvement Actions:
  • Categorize scrap by root cause (setup error, parameter issue, material defect, operator error)
  • Implement corrective actions for top 3 scrap causes
  • Improve first-article inspection to catch issues early
  • Validate material certifications match parameter database
  • Consider material testing for suspect batches

Parameter Drift Rate

Description:

Frequency of parameter adjustments required to maintain quality

Calculation Method:
Number of Parameter Changes / Total Jobs × 100%
Target Value:

≤10% for established materials (indicates stable process)

Measurement Frequency:Monthly
Improvement Actions:
  • Investigate high drift rates - may indicate equipment issues
  • Check for consumable wear patterns (lens contamination, nozzle wear)
  • Verify material batch consistency with supplier
  • Implement preventive maintenance schedule
  • Document all parameter changes with justification for trend analysis

Consumable Cost per Part

Description:

Total consumable costs (nozzles, lenses, windows, gas) divided by parts produced

Calculation Method:
Total Consumable Costs / Number of Parts
Target Value:

Trend downward. Benchmark against similar parts.

Measurement Frequency:Weekly or monthly
Improvement Actions:
  • Track consumable life hours to optimize replacement timing
  • Reduce pierce count through nesting optimization
  • Optimize gas pressure to avoid over-consumption
  • Implement proper handling procedures to prevent damage
  • Consider bulk purchasing or alternative suppliers for cost reduction

Implementing a Continuous Improvement Culture

Successful process optimization requires organizational commitment beyond technical changes:

  • Daily Production Meetings: 15-minute standup to review previous day KPIs, discuss issues, and plan improvements. Focus on facts and data, not blame.
  • Operator Empowerment: Train operators to identify and document quality issues. Implement suggestion system with recognition for improvements.
  • Root Cause Analysis: Use 5-Why or fishbone diagrams for recurring issues. Document findings and corrective actions in database.
  • Benchmark Tracking: Compare performance against industry standards and internal historical data. Celebrate improvements, investigate degradation.
  • Investment Justification: Use KPI data to quantify ROI for equipment upgrades, software purchases, or training programs. Data-driven proposals get approved faster.

References

• TRUMPF Process Optimization Guide 2024
• Bystronic Cutting Parameter Handbook 2024
• ISO 9013:2017 Thermal Cutting Classification
• Industry Field Data and Best Practices

Data Disclaimer: Data Disclaimer: This process optimization data is compiled from TRUMPF Process Optimization Guide 2024, Bystronic Cutting Parameter Handbook 2024, ISO 9013:2017 standards, and industry field data. All information is for reference only. Actual parameters must be validated through testing on your specific equipment, material batches, and environmental conditions. Always refer to equipment manufacturer technical manuals and conduct first-article inspection before production runs. Data last updated: 2025-11-02.
