CO2 Laser vs Fiber Laser: Technology Principles, Performance & Application Selection
CO2 and fiber lasers represent fundamentally different approaches to generating laser light, each with distinct advantages. Understanding the physics, material interactions, and practical implications helps you choose the right technology for your application and budget. For a complete equipment selection framework, see our Equipment Selection Guide or compare specific power levels in our Power Selection Guide . You can also browse our equipment database to see real-world specifications and compare machines side-by-side.
Quick Comparison Overview
| Characteristic | CO2 Laser (10.6μm) | Fiber Laser (1.06μm) |
|---|---|---|
| Wavelength | 10.6 μm (infrared) | 1.06 μm (near-infrared) |
| Beam Delivery | Mirrors (alignment-sensitive) | Fiber optic cable (flexible) |
| Electrical Efficiency | 8-15% (wall-plug) | 25-35% (wall-plug) |
| Beam Quality (M²) | 1.0-1.1 (excellent) | 1.05-2.5 (single/multi-mode) |
| Metal Cutting | Good (requires high power) | Excellent (high absorption) |
| Non-Metal Cutting | Excellent (wood, acrylic, fabric) | Poor (transparent to organics) |
| Maintenance | High (gas refills, mirror alignment) | Low (solid-state, minimal service) |
| Typical Power Range | 100W - 6kW (industrial) | 1kW - 30kW+ (industrial) |
1. Fundamental Physics: Wavelength & Material Interaction

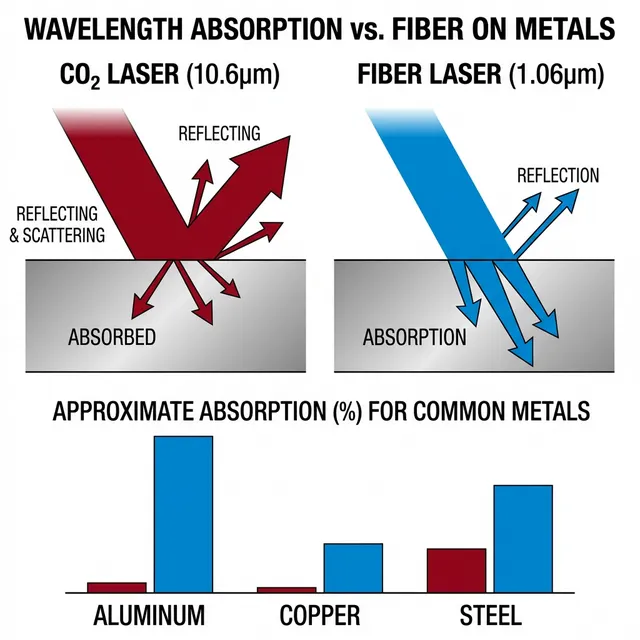

Wavelength Determines Absorption
The 10× wavelength difference between CO2 (10.6μm) and fiber (1.06μm) lasers fundamentally determines which materials they can cut effectively. Laser energy must be absorbed by the material to generate heat for cutting. Absorption rates vary dramatically with wavelength.
CO2 Laser (10.6μm)
High Absorption: Organic materials (wood, acrylic, paper, fabric, leather) absorb 10.6μm wavelength extremely well (80-95% absorption). This makes CO2 lasers ideal for non-metal cutting and engraving.
Metal Absorption: Metals have low absorption at 10.6μm when cold (~2-5% for polished surfaces). However, absorption increases dramatically once material begins melting. This allows CO2 lasers to cut metals, but requires higher power and is less efficient than fiber.
Reflective Metals: Copper, brass, and aluminum are particularly challenging due to extreme reflectivity at 10.6μm. Requires very high power or special surface treatments.
Fiber Laser (1.06μm)
Metal Absorption: Metals absorb 1.06μm wavelength much better than 10.6μm, even when cold (30-40% for steel, 20-30% for stainless). This enables efficient metal cutting at lower power levels and higher speeds.
Reflective Metals: While aluminum and copper still reflect significantly at 1.06μm, modern fiber lasers with specialized modes and power modulation can cut these materials effectively. Requires 30-50% more power than steel equivalents.
Non-Metal Limitation: Organic materials are largely transparent to 1.06μm wavelength. Wood, acrylic, and fabric cannot be cut with fiber lasers. This is the fundamental limitation of fiber technology for non-metal applications.
2. Cutting Performance Comparison
Metal Cutting: Fiber Dominates
For metal fabrication, fiber lasers have largely displaced CO2 technology due to superior absorption, higher speeds, and better efficiency. A 3kW fiber laser typically outperforms a 4-5kW CO2 laser on metals.
Speed Comparison: Carbon Steel 6mm (Oxygen Assist)
Thin Sheet Performance
Fiber lasers excel at thin sheet cutting (0.5-3mm) due to high power density from excellent beam quality. Single-mode fiber lasers (M² < 1.2) achieve focus spots of 0.08-0.10mm, enabling extremely fast cutting on thin materials. A 2kW fiber can cut 1mm stainless steel at 15-20 m/min, while a 3kW CO2 achieves 8-12 m/min.
Thick Plate Cutting
For thick plate (15-30mm), high-power fiber lasers (12-20kW) have become the standard. CO2 lasers struggle with thick materials due to lower absorption and power limitations. A 15kW fiber cuts 20mm carbon steel at 1.8-2.5 m/min with excellent edge quality, while equivalent CO2 systems are rare and expensive.
Non-Metal Cutting: CO2 Exclusive Domain
CO2 lasers remain the only practical choice for cutting organic materials. Wood, acrylic, MDF, cardboard, fabric, leather, and rubber all require CO2 wavelength for effective cutting. Applications include signage, packaging, textiles, woodworking, and architectural models.
3. Efficiency, Operating Cost & Maintenance
Electrical Efficiency
Fiber Laser: 25-35% wall-plug efficiency. A 6kW fiber laser consumes approximately 20-25kW total system power (laser source + cooling + auxiliaries).
CO2 Laser: 8-15% wall-plug efficiency. A 4kW CO2 laser consumes approximately 40-50kW total system power, more than double fiber for equivalent cutting power.
Over 10,000 operating hours, the energy cost difference can exceed $15,000-25,000 at $0.12/kWh, significantly favoring fiber for metal cutting applications.
Maintenance Requirements
Fiber Laser: Solid-state design with no consumable gases, minimal optical alignment. Typical maintenance: protective window cleaning (weekly), nozzle replacement (daily/weekly), chiller service (quarterly). Expected source lifetime: 100,000+ hours.
CO2 Laser: Requires CO2/N2/He gas mixture refills (monthly/quarterly depending on power), mirror cleaning and alignment (weekly/monthly), RF tube or DC tube replacement (2,000-10,000 hours). Higher maintenance labor and consumable costs.
5-Year Total Cost of Ownership (Illustrative)
Despite higher initial cost, fiber lasers typically offer better TCO for metal cutting due to efficiency and lower maintenance. CO2 remains cost-effective only for non-metal applications where fiber cannot compete.
4. Beam Delivery, System Design & Integration
Beam Delivery Methods
CO2 lasers use mirror-based beam delivery systems. The 10.6μm wavelength cannot be transmitted through conventional optical fibers, requiring carefully aligned mirrors to guide the beam from source to cutting head. This makes the system more sensitive to vibration, thermal drift, and requires periodic alignment.
Fiber lasers deliver the beam through flexible fiber optic cables, making the system more compact, robust, and easier to integrate into automated production lines. The cutting head can be mounted on robotic arms or multi-axis gantries without beam path concerns. This flexibility has enabled innovations likerobotic 3D laser cutting systems from manufacturers like OPMT Laser, which combine fiber laser sources with 6-axis robots for complex 3D part cutting.
Footprint & Installation
Fiber laser systems are typically more compact. The laser source is a small module that can be mounted remotely, with only the fiber cable running to the cutting head. CO2 systems require larger resonator chambers and mirror assemblies, resulting in larger machine footprints for equivalent work areas.
5. Application Selection Decision Framework
Choose Fiber Laser If...
Choose CO2 Laser If...
6. Technology Trends & Future Outlook
Fiber laser technology continues rapid advancement. Power levels have increased from 6kW maximum in 2010 to 30kW+ today, while prices have decreased 60-70%. Beam quality improvements enable both ultra-precision (single-mode, M² < 1.1) and high-power thick plate cutting (multi-mode, 20kW+) from the same technology platform.
CO2 laser development has plateaued, with most innovation focused on cost reduction and reliability rather than performance breakthroughs. The technology remains dominant for non-metal applications but has largely been displaced by fiber in metal fabrication.
Hybrid systems combining fiber and CO2 sources in a single machine are emerging for shops requiring both metal and non-metal capability, though they remain niche due to complexity and cost.
